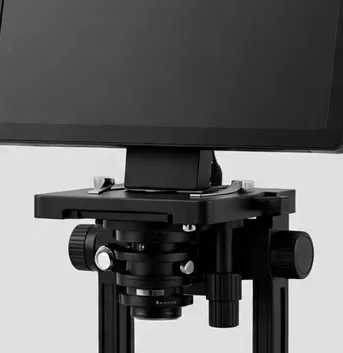

Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
When several people need to see the same specimen — a class, a trainee, or a customer across the counter — the ViewPro 10.1 earns its space. The large IPS panel keeps fine detail readable, and HDMI output mirrors the image to a monitor or projector for group viewing. Two lens options cover both low-power whole-object views and higher-power detail work. As with every microscope we list, magnification combines the optical range with digital zoom; we state it that way because digital zoom cannot create detail the sensor did not capture. Photo and video capture runs to microSD, with USB viewing on Windows and Mac.
| Compatibility | Windows 10/11, macOS 11+; any HDMI display |
|---|---|
| Focus | Manual focus; interchangeable lenses |
| Lighting | Adjustable lens LEDs + transmitted LED base; two fill lights |
| Magnification | 10x–1600x across two lenses (optical range with digital zoom; digital zoom does not add resolution) |
| Outputs | HDMI out, USB-C to PC/Mac, microSD slot (card not included) |
| Power | AC adapter (included) or USB power bank |
| Screen | 10.1-inch IPS LCD |
| Sensor / Resolution | 1080p Full HD photo and video capture |
| Stand / Mount | Heavy-duty metal stand with XY stage plate |
| Working distance | Approx. 0.4–6 in (10–150 mm), lens dependent |
For this model the published figure is: 10x–1600x across two lenses (optical range with digital zoom; digital zoom does not add resolution).
Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. Focara publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.
| Working distance | Approx. 0.4–6 in (10–150 mm), lens dependent |
|---|---|
| Screen | 10.1-inch IPS LCD |
| Sensor / Resolution | 1080p Full HD photo and video capture |
| Outputs | HDMI out, USB-C to PC/Mac, microSD slot (card not included) |
| Lighting | Adjustable lens LEDs + transmitted LED base; two fill lights |
| Focus | Manual focus; interchangeable lenses |
| Stand / Mount | Heavy-duty metal stand with XY stage plate |
The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.
HDMI works with any monitor or TV. USB viewing on Windows and Mac with standard camera software.
Power: AC adapter (included) or USB power bank.
Your work is school science & stem, electronics repair & pcb soldering, coin collecting, and the specifications above — magnification, working distance, outputs and lighting — fit how you actually work. It is a intermediate-level instrument at a market-rate price of $169.99.
$44.99
View
$79.99
View
$119.99
ViewConfirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).
10x–1600x across two lenses (optical range with digital zoom; digital zoom does not add resolution). The digital portion enlarges the captured image; it does not add resolution — the sensor and the optics decide the real detail.
In the box: ViewPro 10.1 microscope; Two lenses (low/high power); Metal stand with stage; HDMI cable; Wireless remote; Power adapter; Quick-start guide. HDMI works with any monitor or TV. USB viewing on Windows and Mac with standard camera software.
Checkout creates an order reference and an order email; we reply with confirmation and payment instructions — payment is not processed online yet. Unused items in original condition can be returned within 30 days, and the store's 12-month warranty covers defects in materials and workmanship.
Compact 1080p screen microscope for coins, crafts and first bench work
A small-footprint digital microscope with a 4.3-inch LCD and 1080p photo and video capture. Suited to coins, stamps, craft detail and quick bench checks where a full-size screen would be in the way.
$44.99
Sample catalog — order confirmed by email
The all-round bench microscope: 7-inch screen, 1080p, LED base
Our most versatile screen microscope. A 7-inch IPS display, 1080p capture, dual lighting and a wireless remote for shake-free photos of coins, boards and small parts.
$79.99
Sample catalog — order confirmed by email
Whole-coin view on screen, with HDMI for closer die and mint-mark study
Built for collectors: a wide field of view that frames a whole large coin on the 7-inch screen, then zooms to mint marks and die details. HDMI output included.
$119.99
Sample catalog — order confirmed by email
