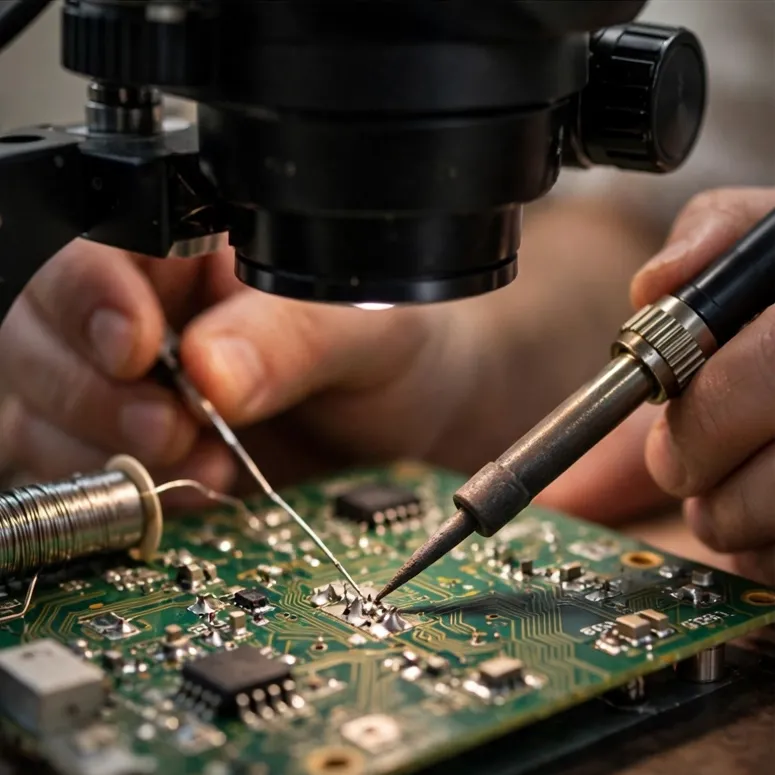

Board repair concentrates every microscope requirement into one bench: fine detail (0402 passives, 0.4 mm pitch pins), real-time hand work (iron, tweezers, hot air), and hours-long sessions that punish bad ergonomics. The stations that succeed all share three traits — at least three inches of working distance, a low-latency image path, and light that does not fight your hands.
Two station styles divide the trade. HDMI camera stations show the board on a monitor: relaxed posture, easy capture for customer documentation, and an image a second set of eyes can share. Stereo stations give true depth, which technicians prize for judging joint shape and component seating. The trinocular stereo with a camera is the merger — depth for your hands, a screen for everyone else — and it is where high-volume benches often land.
Magnification is the least interesting number here: 7x–45x optical, or its screen equivalent, covers board work entirely. Spend the attention instead on the stand (a boom or flex arm that parks clear), the ring light (hand shadows are where bad joints hide), and capture (a photo of the fault before and after is the cheapest insurance a repair shop sells).
For the full reasoning on latency, working distance and stand choice, our soldering microscope guide goes deeper; the category page gathers the models that fit the brief.
4K HDMI camera microscope on a flex arm — autofocus keeps joints sharp while you work
A 4K HDMI inspection camera on a flexible arm with autofocus and on-screen measurement. Long working distance leaves room for an iron, tweezers and hot air.
$289.99
Sample catalog — order confirmed by email
Two lenses, one boom arm: wide board view plus high-power detail, on HDMI and USB
A boom-arm camera microscope with two swappable lenses — a wide lens for whole-board orientation and a detail lens for joints — feeding HDMI and USB at once.
$269.99
Sample catalog — order confirmed by email
True stereo depth for inspection and repair — continuous 7x–45x zoom on a boom arm
A binocular stereo microscope with continuous 7x–45x optical zoom and a long boom arm. Real depth perception for soldering, jewelry, watch work and inspection.
$649.99
Sample catalog — order confirmed by email
Shadow-free illumination for any microscope — 144 LEDs with a dimmer
A 144-LED ring light with adjustable brightness and three mounting adapters. Even, shadow-free light for coins, boards and jewelry — the cheapest image upgrade there is.
$59.99
Sample catalog — order confirmed by email
Browse the full ranges: Soldering & Electronics Microscopes · HDMI Microscopes
They are handled comfortably in the 10x–45x optical range. Higher figures do not add usable detail for soldering.
The image is passing through a computer or app. Feed the camera directly to a monitor over HDMI for live work.
Camera for posture, sharing and documentation; stereo for depth when judging joints; trinocular stereo with a camera when the budget allows both.
Three inches is the floor; four or more is comfortable with hot air. A 0.5x Barlow on a stereo head buys distance at half magnification.
