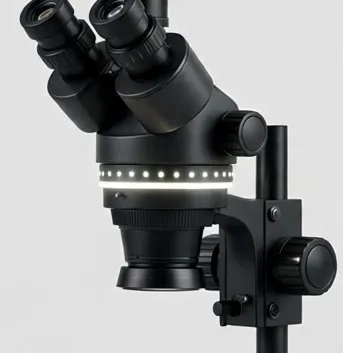

MicroHub ZoomStereo Trino HD 3.5x–90x Stereo Microscope with Camera

Overview

This is the training-station version of our stereo line: you work through the binocular eyepieces with true depth perception while the trinocular port feeds an HDMI camera, so a trainee or a customer watches the same field on a monitor. Included Barlow lenses extend the optical range to 3.5x–90x and increase working distance at the low end — useful over tall assemblies. The LED ring light gives shadow-free illumination for reflective parts like watch movements and polished jewelry. Optical zoom figures are stated with the standard 10x eyepieces.

Key benefits

• HDMI output. A live image on any monitor or TV — built for shared viewing, teaching and bench work.
• Working distance — Approx. 4 in (100 mm); up to 6.5 in with 0.5x Barlow. The clearance under the lens decides whether hands and tools fit — this model publishes the figure.
• Focus — Rack-and-pinion with tension control.
• Lighting — LED ring light included, adjustable brightness.
• Stand — Pillar stand with large base (boom stand optional). A stable working position that holds focus while you work.

Technical specifications

Magnification, explained honestly

For this model the published figure is: 7x–45x optical zoom; 3.5x–90x with included 0.5x and 2x Barlow lenses.

Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. MicroHub publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.

Working distance, screen & output

The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.

What’s in the box

• ZoomStereo Trino head
• HDMI camera
• 0.5x and 2x Barlow lenses
• LED ring light
• 10x eyepiece pair
• HDMI cable
• Dust cover
• User manual

Compatibility & power

Camera outputs HDMI to any monitor; USB capture on Windows and Mac.

Power: AC adapters (included).

Who should buy this model — and who should not

Compare with alternatives

MicroHub ViewPro 10.1" LCD Digital Microscope
Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
$780.00 less than this model · Screen: 10.1-inch IPS LCD · Working distance 0.4–6 in

$169.99

View

MicroHub CoinView 7" Coin Microscope
Whole-coin view on screen, with HDMI for closer die and mint-mark study
$830.00 less than this model · Screen: 7-inch LCD · Working distance 0.4–5.5 in

$119.99

View

MicroHub CoinView 7" Coin Microscope with Precision Scale
See it and weigh it: 7-inch coin microscope with a 0.001 g bench scale in the box
$820.00 less than this model · Screen: 7-inch LCD

$129.99

View

Open the full comparison tool

Shipping, returns & warranty

Confirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).

Frequently asked questions
