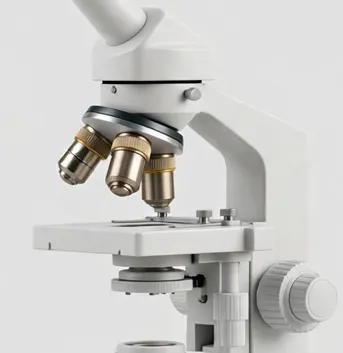

Honest student compound microscope: glass optics, LED illumination, metal frame
The LabMono keeps the specification honest: 40x to 1000x is true optical magnification from a 10x eyepiece and 4x, 10x, 40x and 100x achromatic objectives — no digital zoom figures. The metal frame, mechanical stage and coaxial coarse and fine focus are the parts that decide whether a student microscope survives a school year, and they are all here. LED illumination runs from batteries or USB, so it works on a classroom table without hunting for outlets. It is an education and hobby instrument: it is not a diagnostic device and does not replace clinical laboratory equipment.
| Compatibility | Optional phone adapter (sold separately) for photos through the eyepiece |
|---|---|
| Focus | Coaxial coarse and fine focus knobs |
| Head | Monocular, 45° inclined, 360° rotatable |
| Lighting | LED transmitted light with brightness control; mirror backup not included |
| Magnification | 40x–1000x optical (10x eyepiece × 4x/10x/40x/100x objectives) |
| Objectives | Achromatic 4x, 10x, 40x (spring), 100x (spring, oil) |
| Power | 3× AA batteries or USB power |
| Screen | None — optical eyepiece viewing |
| Stage | Mechanical XY stage with slide holder |
For this model the published figure is: 40x–1000x optical (10x eyepiece × 4x/10x/40x/100x objectives).
Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. Focara publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.
| Screen | None — optical eyepiece viewing |
|---|---|
| Lighting | LED transmitted light with brightness control; mirror backup not included |
| Focus | Coaxial coarse and fine focus knobs |
The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.
Standalone optical instrument; optional phone adapter for photography.
Power: 3× AA batteries or USB power.
Your work is school science & stem, laboratory research, plant & specimen observation, and the specifications above — magnification, outputs and lighting — fit how you actually work. It is a beginner-level instrument at a market-rate price of $159.99.
$169.99
View
$339.99
View
$399.99
ViewConfirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).
40x–1000x optical (10x eyepiece × 4x/10x/40x/100x objectives). The figure is optical, produced by the lens system itself.
In the box: LabMono microscope; 10x eyepiece; 5 prepared slides; 5 blank slides and cover slips; USB cable; User manual. Standalone optical instrument; optional phone adapter for photography.
Checkout creates an order reference and an order email; we reply with confirmation and payment instructions — payment is not processed online yet. Unused items in original condition can be returned within 30 days, and the store's 12-month warranty covers defects in materials and workmanship.
