True stereo depth for inspection and repair — continuous 7x–45x zoom on a boom arm

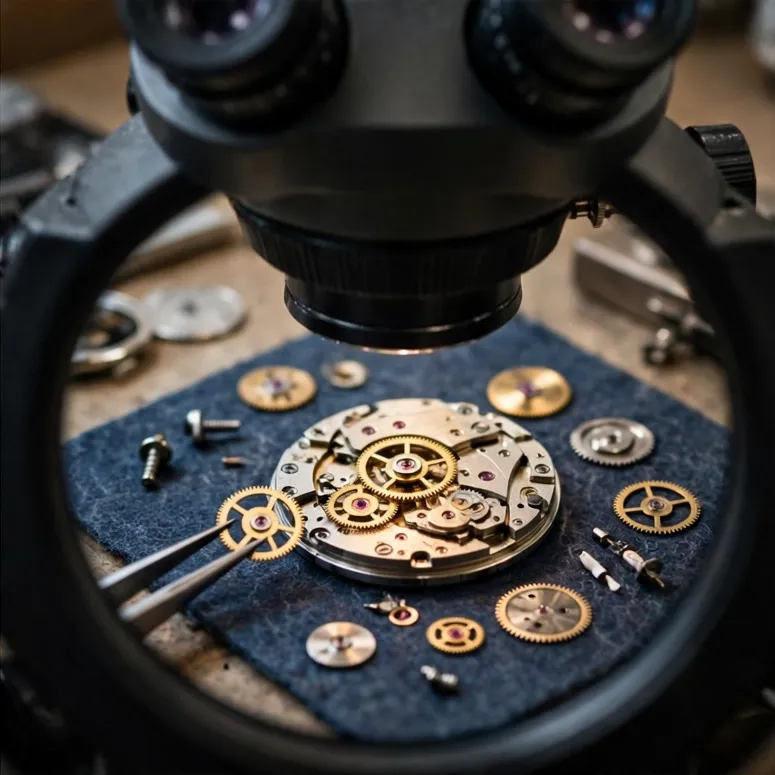

Stereo microscopes show the world in three dimensions, which is why repair and inspection work is done under them: you can judge the height of a solder joint or the seating of a jewel at a glance. The ZoomStereo gives continuous 7x–45x optical zoom — turn the knob and the image stays in focus — on a double-arm boom stand that swings over large boards and assemblies, with about four inches of working distance for tools. There is no camera and no screen; this is the direct optical view professionals still reach for when hand-eye coordination matters.
| Field of view | Up to approx. 1.1 in (28 mm) at 7x |
|---|---|
| Focus | Rack-and-pinion focus block with tension control |
| Head | Binocular, 45° inclined, interpupillary and diopter adjustment |
| Lighting | Optional ring light (Focara RingLight 144 sold separately) |
| Magnification | 7x–45x continuous optical zoom (10x eyepieces) |
| Power | None required (optical); ring light uses USB/AC |

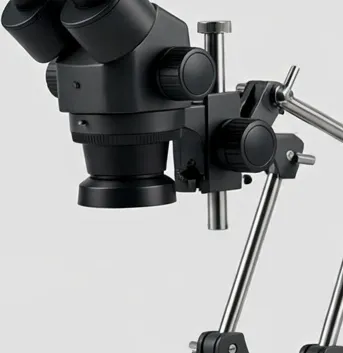

| Stand / Mount | Double-arm boom stand, heavy base, 360° head rotation |
| Working distance | Approx. 4 in (100 mm) |
For this model the published figure is: 7x–45x continuous optical zoom (10x eyepieces).
Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. Focara publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.
| Working distance | Approx. 4 in (100 mm) |
|---|---|
| Lighting | Optional ring light (Focara RingLight 144 sold separately) |
| Focus | Rack-and-pinion focus block with tension control |
| Stand / Mount | Double-arm boom stand, heavy base, 360° head rotation |
| Field of view | Up to approx. 1.1 in (28 mm) at 7x |
The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.
Standalone optical instrument; accepts standard ring lights and auxiliary lenses.
Power: None required (optical); ring light uses USB/AC.
Your work is jewelry inspection & watch repair, industrial quality control, hobby & craft inspection, electronics repair & pcb soldering, and the specifications above — magnification, working distance, outputs and lighting — fit how you actually work. It is a intermediate-level instrument at a market-rate price of $649.99.
$289.99
View$269.99
View
$949.99
ViewConfirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).
7x–45x continuous optical zoom (10x eyepieces). The figure is optical, produced by the lens system itself.
In the box: ZoomStereo head; 10x eyepiece pair; Double-arm boom stand; Rubber eye guards; Dust cover; User manual. Standalone optical instrument; accepts standard ring lights and auxiliary lenses.
Checkout creates an order reference and an order email; we reply with confirmation and payment instructions — payment is not processed online yet. Unused items in original condition can be returned within 30 days, and the store's 12-month warranty covers defects in materials and workmanship.
